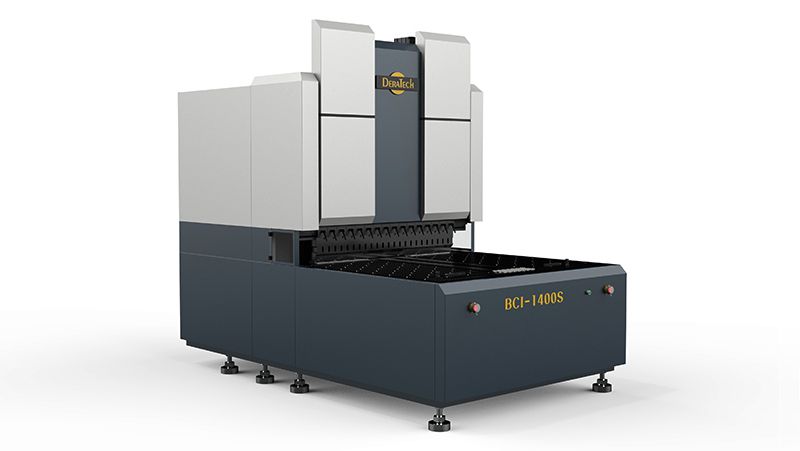

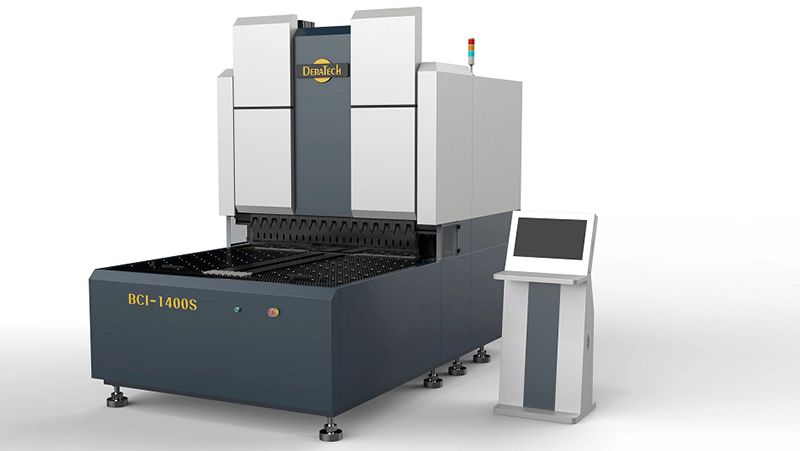

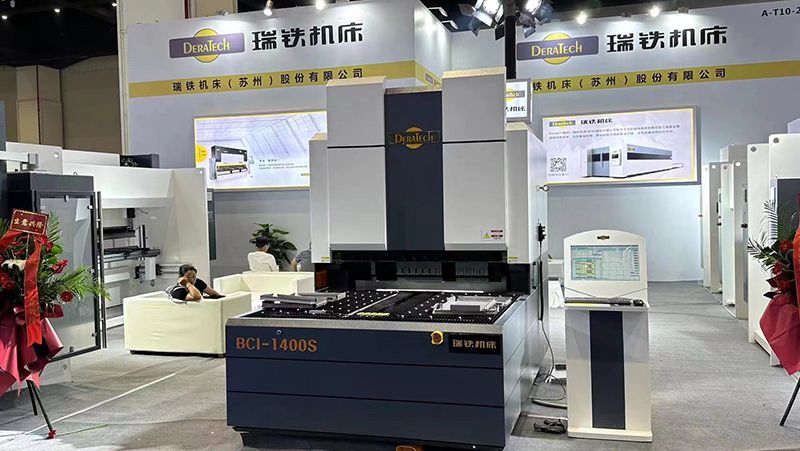

    Bending Center with Suction Cup

    BCI Series

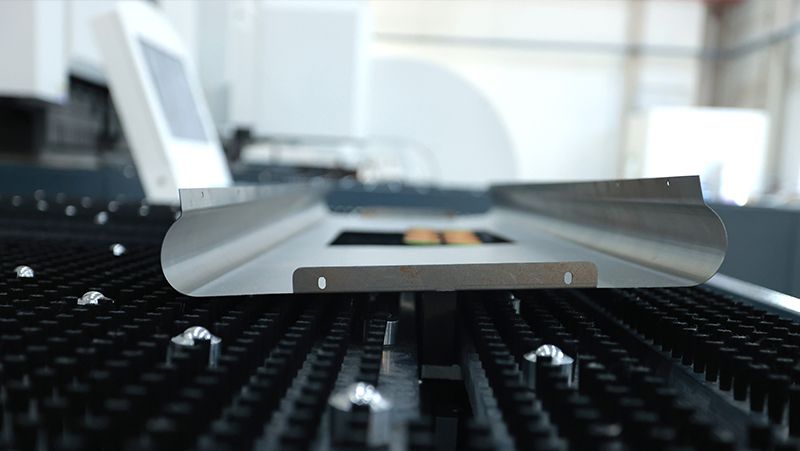

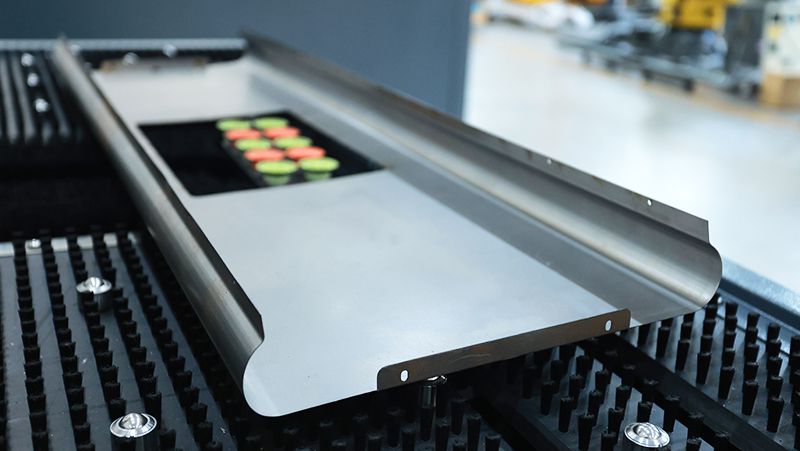

    Deratech launched BCI series bending center with a suction cup is an excellent solution for thin sheet metal bending. Featuring full servo control, a short stroke, and rapid feeding, this machine can complete a single bending operation in as fast as 0.2 seconds. Moreover, its one-time loading capability enables the entire bending process of the sheet metal to be completed seamlessly. When combined with the flexible bending loading and unloading unit, it delivers automatic production.

    Download
    Request a Quote
    Applications
    Applications
    Applications
    Applications
    • Electronic components manufacturing
    • Electrical metaleEnclosures fabrication
    • Sheet metal fabrication
    Parameters
    Model BCI-1412
    Max. bending size (mm) 1400×1400 mm
    Min. double side forming size 140 mm
    Min. four side forming size 140×210 mm
    Max. bending height 170 mm
    Max. panel thickness Carbon steel panel (UTS 410 N/mm2) 1.2 mm
    304 stainless steel panel (UTS 515 N/mm2) 1 mm
    201 stainless steel panel (UTS 520 N/mm2) 0.8 mm
    Aluminum panel (UTS 265 N/mm2) 1.6 mm
    Min. panel thickness 0.35 mm
    Peak power 34 kW
    Average power 1.5 kW
    Bending angle ±150°
    Servo axis 9 PCS
    Dimensions(L*W*H) 3660×1910×2900 mm
    Machine weight 10 Ton
    Details

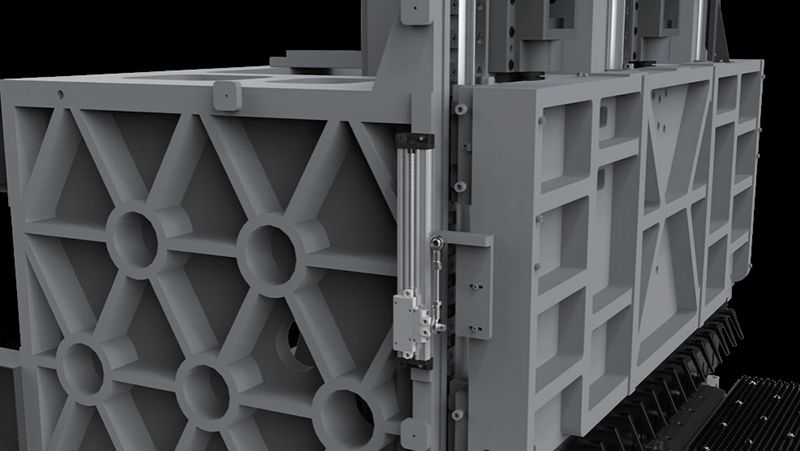

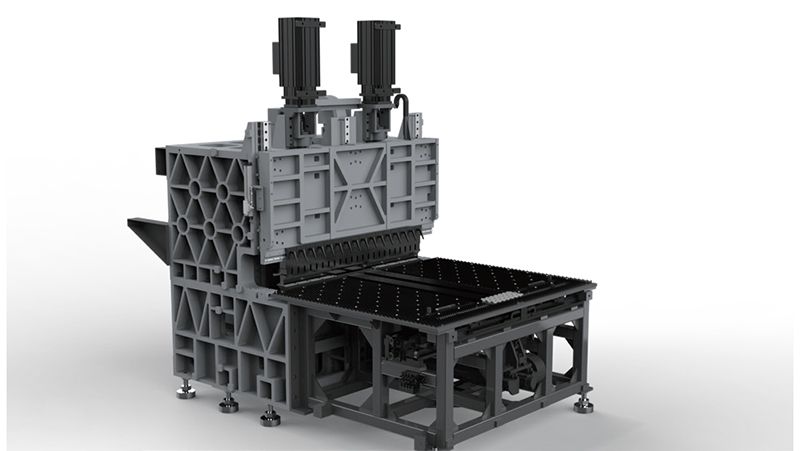

      1. Scientific structural design
      2. Scientific structural design

        The entire process is computer-aided, including design and validation. The equipment's core framework is built using high-grade castings such as QT500-7, HT250 and above, which ensure strong stability.

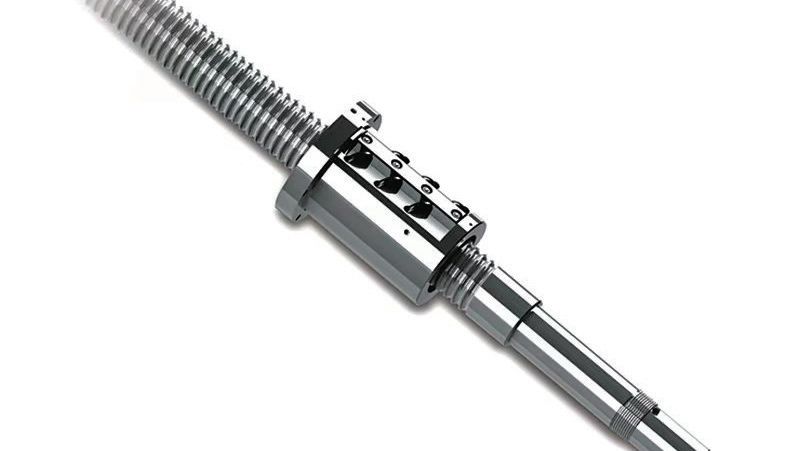

      1. Precision drive mechanism
      2. Precision drive mechanism

        The drive mechanism adopts heavy-duty ground ball screws, with a maximum specification of 8020. Theses ball screws are coupled with heavy-duty type high-precision P3 grade 55 roller type linear guides.

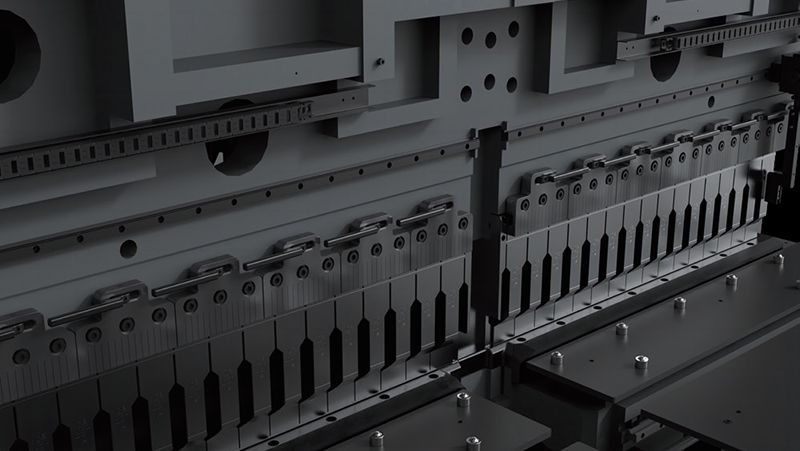

      1. Quick-release tools
      2. Quick-release tools

        Equipped with precision standardized bending and press tools, the surface hardness achieves over HRC55. The tools are convenient to disassemble and can be customized according to customer requirements.

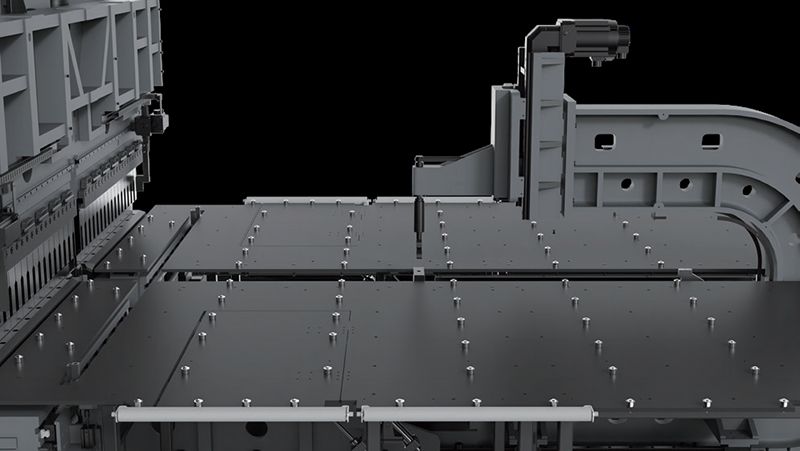

      1. Precise and stable positioning system
      2. Precise and stable positioning system

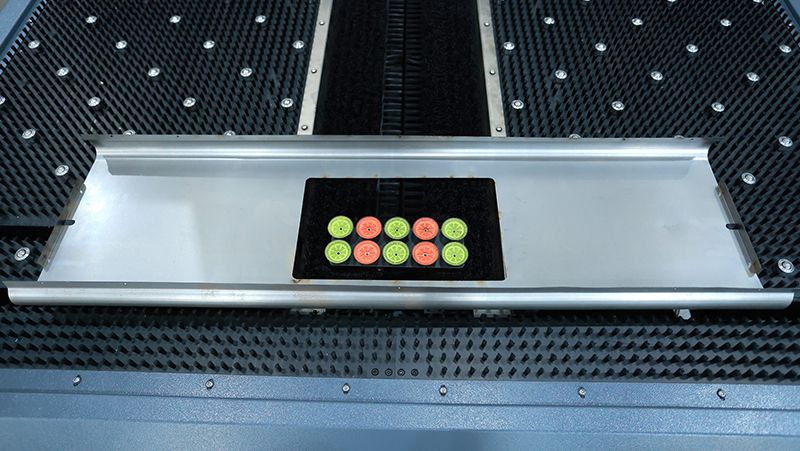

        The machine adopts the Y-axis three-point positioning method for material feeding, along with the use of suction cups to securely hold the workpiece in place.

      1. Sheet Thickness Measuring Device
      2. Sheet Thickness Measuring Device
    Related Products

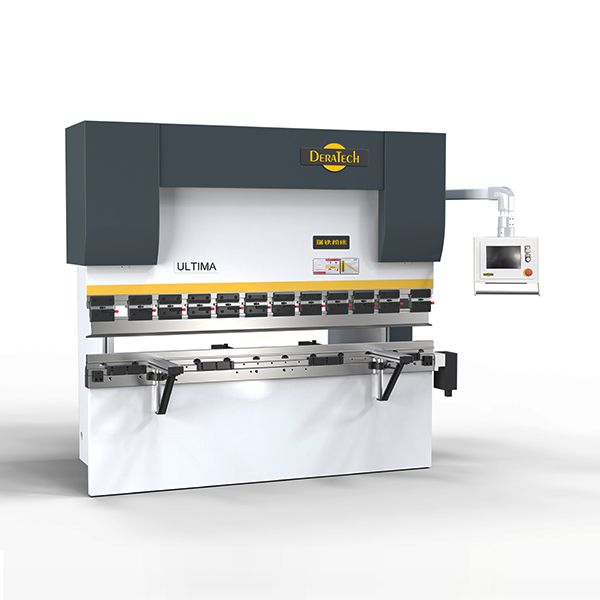

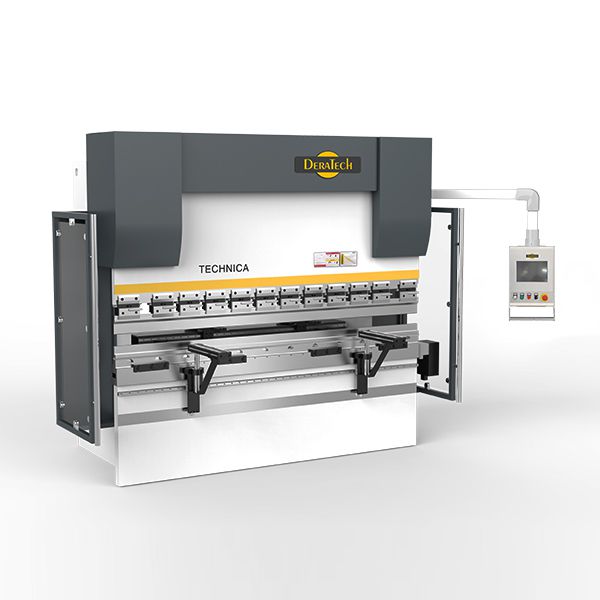

    Experience precision and efficiency like never before with our state-of-the-art CNC press brake. Trust us to meet all your sheet metal bending needs and discover the difference our CNC press brake can make for your projects.
