A well-known sheet metal enterprise, in order to overcome the bottlenecks of traditional production, required the development of a fully automated production line covering the entire process of blanking – punching – transfer – bending. The goal was to reduce costs, improve efficiency, and enhance processing stability.

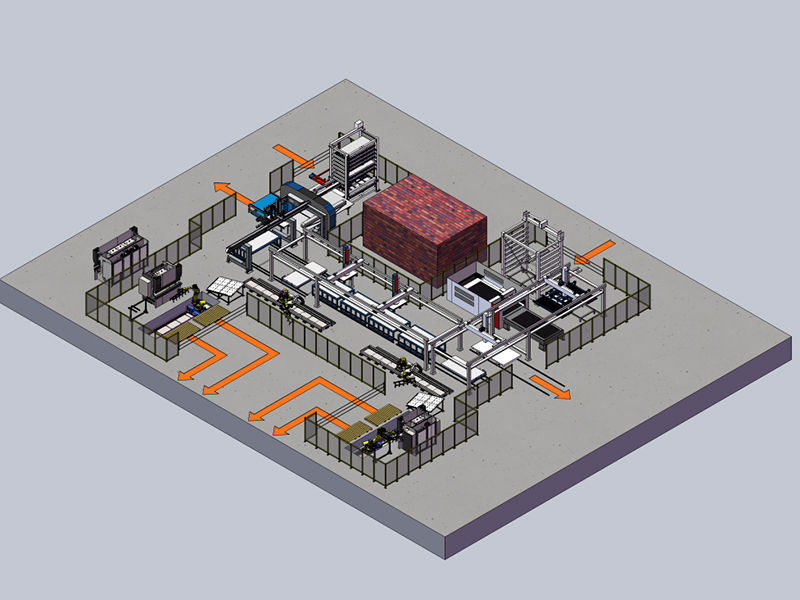

The production line mainly consists of four major units + central control software:

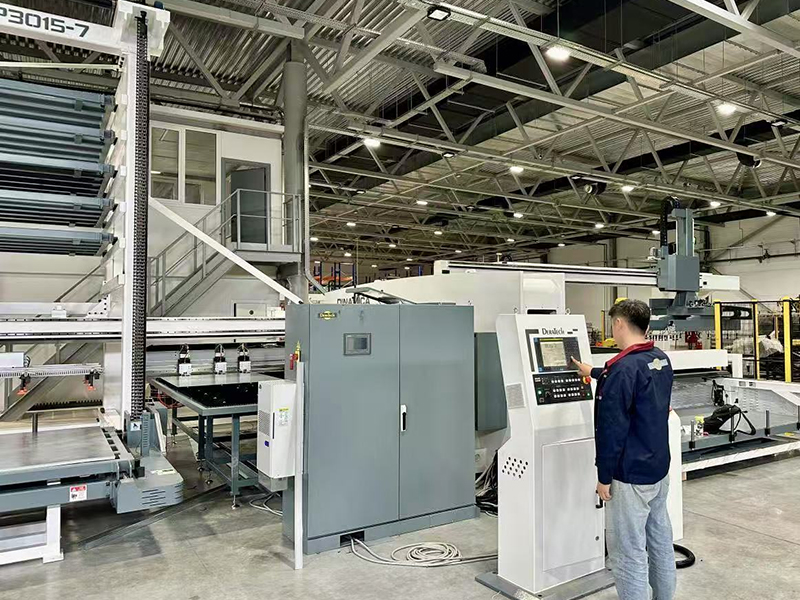

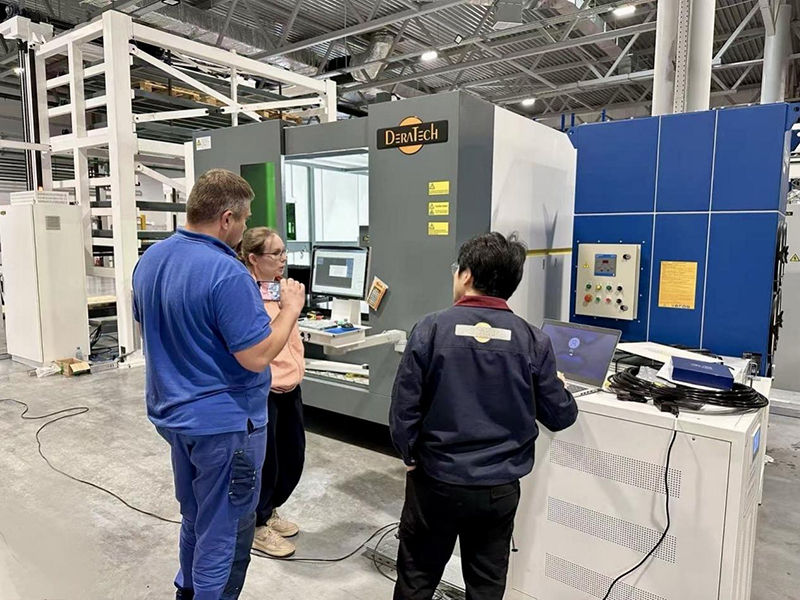

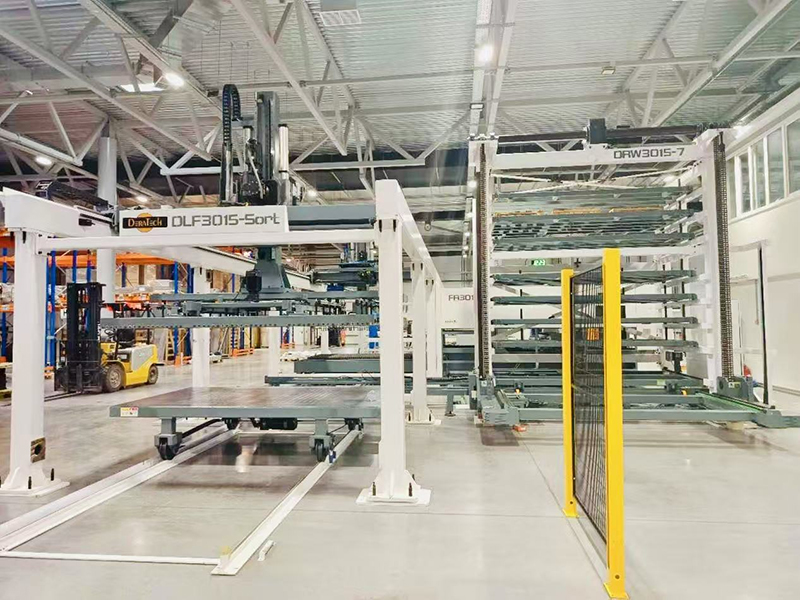

• Blanking Unit: Centered on a 6000W fiber laser cutting machine (FUTURA3015), equipped with a vertical material warehouse and automatic loading/unloading devices;

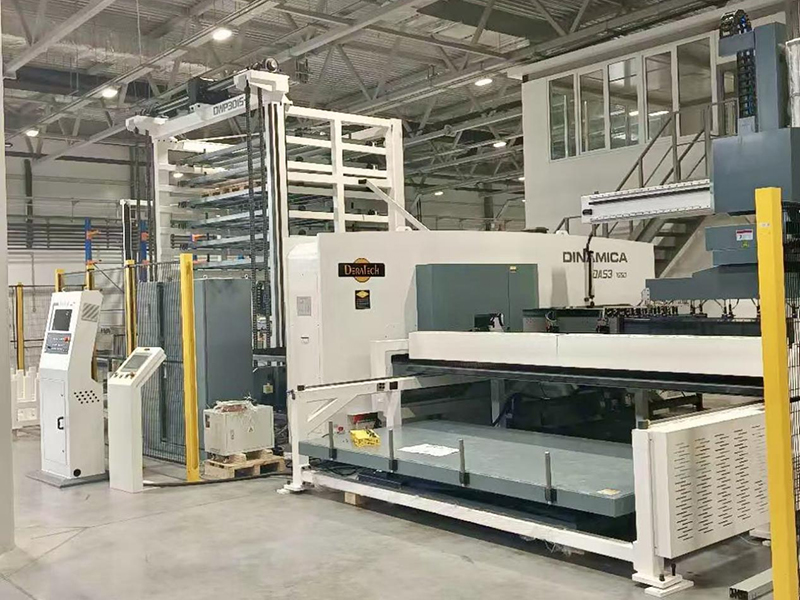

• Punching Unit: Centered on a DINAMICA 3.1550 CNC servo turret punch press, equipped with a vertical material warehouse and automatic loading/unloading devices;

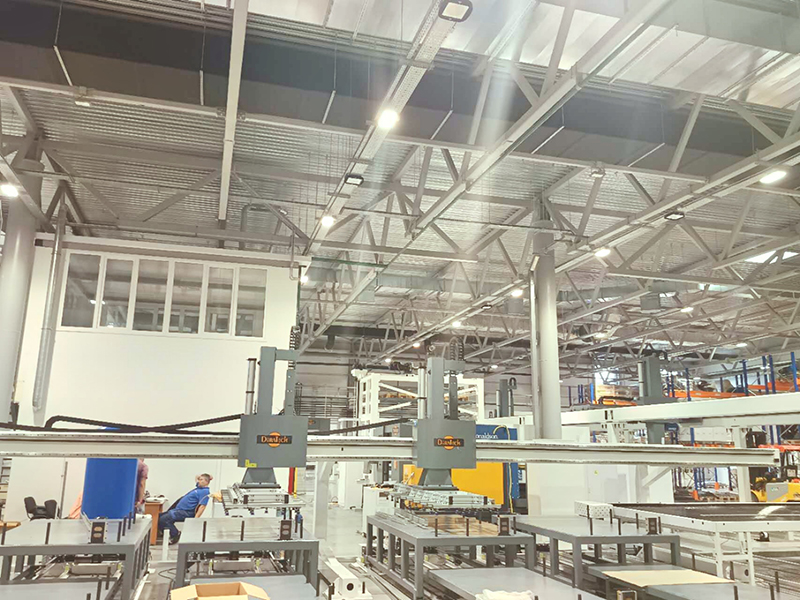

• Sheet Transfer Unit: Featuring an automated truss-based material handling system, equipped with upper and lower electric carts for transfer and buffering;

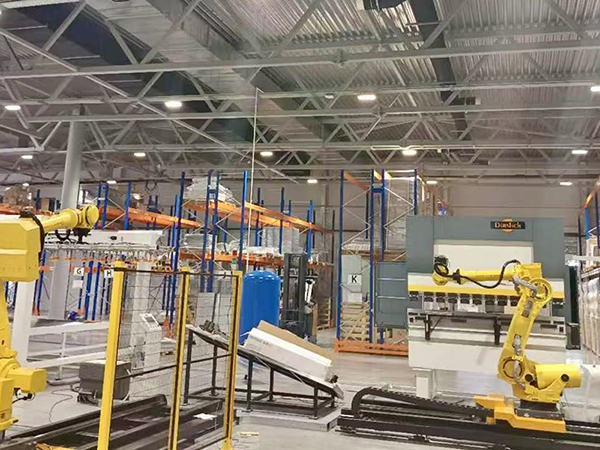

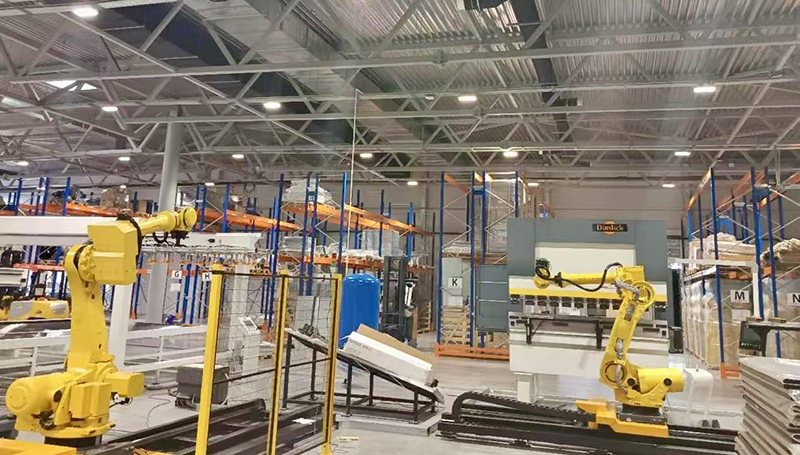

• Automatic Bending Unit: Composed of double hydraulic-electric hybrid pump-controlled bending machines and a FANUC robot, completing the final forming operations;
• Central Control Software: Decomposes and distributes production tasks, coordinates the progress of different units, and ensures stable and efficient production operations across the line.

At present, this automated sheet metal production line has entered the delivery and commissioning stage. Let us look forward to its successful launch into production. Updates on subsequent production progress will continue to be released - please stay tuned!
